The innovative IoT I/O IP board with relays

fully WEB managed!



• Ethernet interface
• Available in different versions
• Up to 4 analogue inputs 0-10V/0-5V at 10 bit
• Up to 8 digital inputs, even opto-isolated
• Up to 8 220V@10A output power relays
• Control LED on board
• Entirely WEB managed
• User friendly WEB GUI
• Free SDK API based on HTTP protocol
• New firmware available with improved features
• It converts any traditional fire and alarm system in IP technology

Download brochure



PADI, remote IP I/O WEB managed control at your service

PADI is the ideal Input/Output IoT interface over IP to manage systems remotely, to control any analogue and digital sensor via Internet, to switch on and off relays attached to motor or to remotely activate gates, lights and more, all from a very easy WEB interface.

For further informations send us an email to This email address is being protected from spambots. You need JavaScript enabled to view it.

Acquistala subito ONLINE con qualsiasi carta di credito cliccando su Paga adesso



DISCOVER THE FEATURES

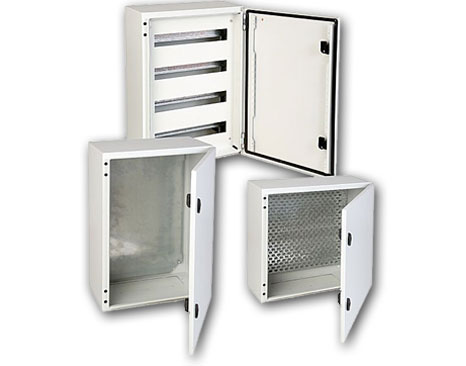

Italian design and DIN rail mounting

PADI is available in different versions, designed to be easily installed in 9 modules DIN rail domestic or industrial cabinet.

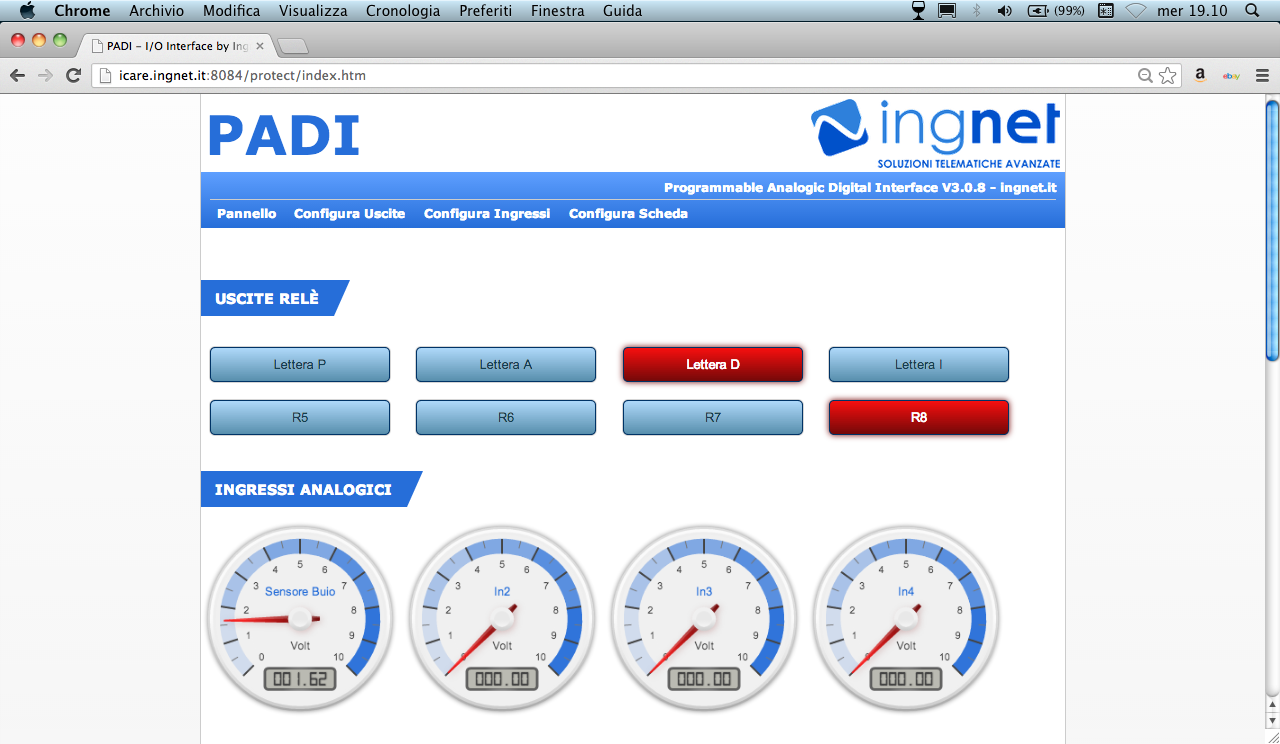

Very easy GUI

You can view and remotely manage the status of analog and digital I/O through any WEB browser from your LAN network or from any Internet connection. Its clear WEB interface allows you to configure all the main settings, to easily read the values from the sensors and to control actions on output devices connected to its relays.



Do you want more from your remote control system over IP?

Discover and test yourself iCare, the embedded software for sensor and IP cam remote monitoring over an IP network which allows you to intuitively manage many PADI boards simultaneously in a real WEB graphic supervision system like a SCADA.

See how it is so easy to remote manage a complex system over IP with iCare from WEB, connected to the I/O cards over IP PADI from a Tablet or Smartphone Apple or Android or even from a Smart TV without installing any APPs!.

With new firmware, I/O over IP PADI board allows you now, through its simple web interface, , to customize not only the labels of its digital and analog inputs and relay outputs but also to manage automatic behaviors on its output relays in case of one or more event changes on its digital inputs.

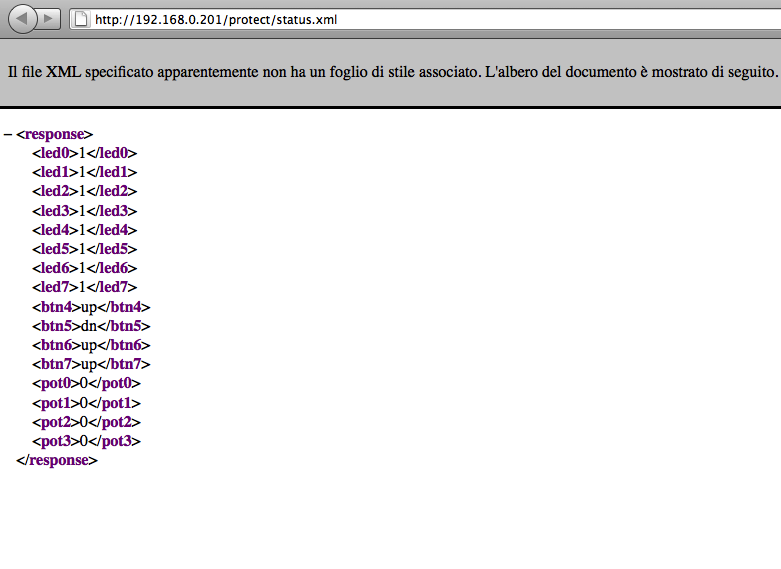

PADI is easily integrable in any software that you want to developl!

PADI is integrable inside any other third-party software.

Through simple requests based on HTTP protocol, it is very easy to integrate PADI board in any supervision and remote control software solutions developed with any programming language (C, C++, C#, Visual Basic.NET, ASP.NET, PHP, PERL, PYTHON, JAVA e JAVASCRIPT) running on any operating system.

Example of use

These are just some examples of what you can manage with PADI relay board over IP:

• ON/OFF REMOTELY BOILER
• ON/OFF REMOTELY LIGHTS
• OPEN/CLOSE REMOTELY OR LOCALLY GATES VIA WEB
• SIMULATION OF REMOTE PRESENCE IN AN ENVIRONMENT

• REMOTE ACTIVATION OF A PUMP OR A LIGHT

• REBOOT REMOTE EQUIPMENT (ROUTER, SERVER, RADIO....)
• REMOTE VOLTAGE MONITORING

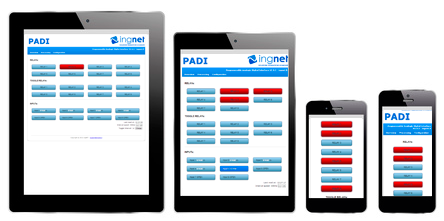

PADI is controllable from any smartphone, tablet and now from a SMART TV!

You can now read the status of the inputs, drive output relays wherever you are from any smartphone, tablet, and also from the Smart TV without installing any APPs.



---

PADI is also compatible with any smartphone and tablet
